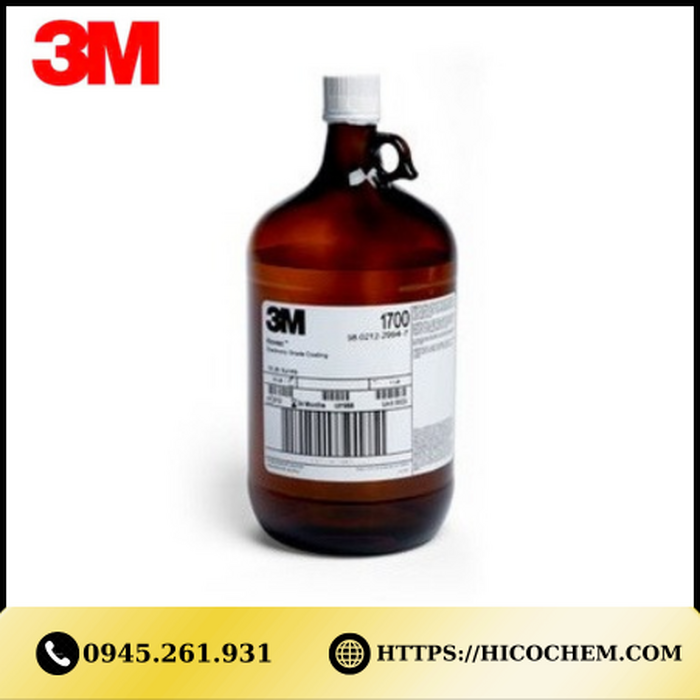

3M™ Novec™ 1700
4 5 (1 evaluate)Category: 3M™
Manufacturer: 3M
Origin: US
Packaging: 5kg, 25kg
Shipping: We provide door-to-door worldwide shipping services using UPS or FedEx
3M™ Novec™ 1700 Electronic Grade Coating is a clear, low viscosity, low surface tension solution of a fluorochemical acrylic polymer carried in a hydrofluoroether solvent. Designed for moisture and corrosion protection of printed circuit boards and electronic components, it dries to a thin, transparent, film with excellent hydrophobic and oleophobic properties. It is easy to apply, does not need post-curing, is removable and repairable. It is non-flammable, low in toxicity, non-ozone depleting and RoHS compliant.
Technical Physical Properties of 3M™ 1700 Electronic Grade Coating
| Property | Coating Solution |
| Appearance | Clear, colorless to light-colored liquid solution |
| Solids | 2 wt% fluoropolymer |
| Solvent | 3M™ Novec™ 7100DL Engineered Fluid |
| Specific Gravity | 1.5 |
| Boiling Point of Solvent | 61°C (142°F) |
| Flash Point | None |
| Environmental | Low in toxicity, non-ozone depleting, non-flammable, VOC exempt (US EPA), RoHS compliant, contains no chlorine or bromine |
| System | One Part |
| Property | Fluoropolymer Coating |
| Appearance | Transparent, colorless |
| Coating Thickness | 0.1-1.0 microns (depending on application method) |
| Solvent and Chemical Resistance | Yes |
| Tg (glass transition temperature) | 44.5°C |
| Thermal Stability of Dry Film | Repellent to chlorinated silicone oil after 24 hours at 175°C |
| Contact Angles (static, dip coated/dried on glass substrate) | 105° (water), 65° (hexadecane) |
| Refractive Index | 1.39 |
| Shelf Life | Four years date of manufacture in unopened container |
| Solder-Through Repairability | Yes |
| Nonflammability | Meets UL 94 V-0 |
| Dielectric Constant @30% RH | 3.1 (@1kHz) |
| Dissipation Factor @30% RH | 0.0089 (@1kHz) |
| Dielectric Breakdown Strength @35% RH | 1000 V/mil |
Features of 3M™ 1700 Electronic Grade Coating
• Easy application and processing – dries in seconds without the need for thermal post-curing
• Requires little or no masking
• Is easily removed for rework & repair
• Allows solder-through repairability
• Contains no volatile organic compounds (VOCs) and has low global warming potential
• Is thermally and electrically stable with excellent dielectric properties
• Can be applied to metals, glass or epoxy laminates
• Provides excellent repellency, antiwetting and anti-sticking properties against liquids – water, hydrocarbons, silicones, and photoresists
• Is insoluble in solvents such as heptane, toluene & water
• The polymer can endure up to 175°C for prolonged periods and maintain good repellency
• Has low surface energy which allows lubricating oils, silicones, photoresist solutions, etc. to bead and drain freely coated surfaces
• Has excellent surface wetting including under low profile components
Application of 3M™ 1700 Electronic Grade Coating
• Provides excellent moisture, chemical and corrosion protection to printed circuit boards and their components
• Is an easy and cost effective alternative to conformal coatings
• Can be used as a sacrificial surface treatment that can be selectively removed with Novec Engineered Fluids
• Can serve as
– an anti-stiction coating for liquid crystal displays, micromotors or MEMS (Micro Electronic Mechanical Systems) components
– an anti-migration coating for displays, spindle motors or lubricated electronic parts or
– an anti-corrosion coating for a variety of materials and components
