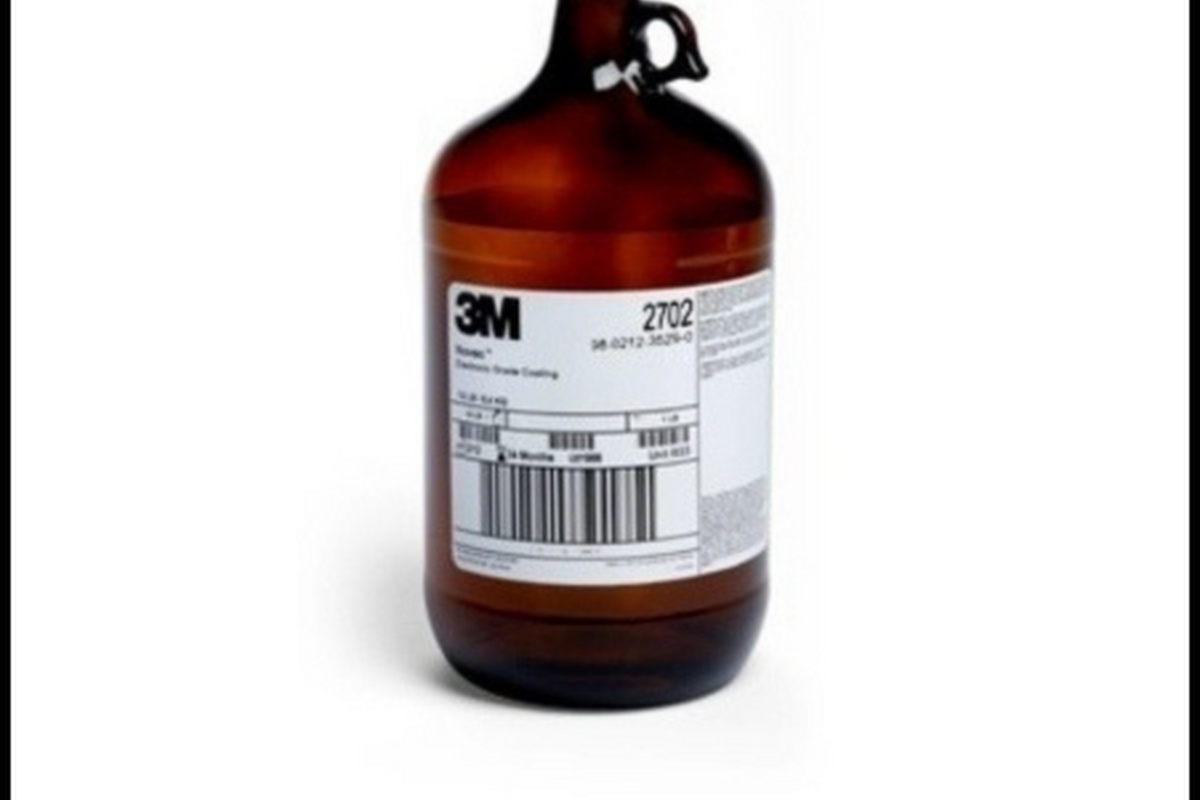

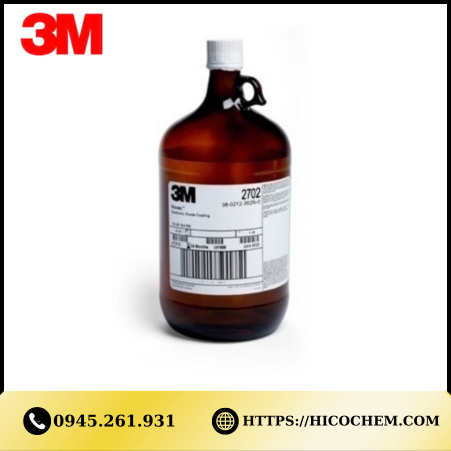

3M™ Novec™ 2702
4 5 (1 evaluate)Category: 3M™
3M™ Novec™ 2702 Electronic Grade Coating is a clear, low viscosity, low surface tension solution of a fluorochemical polymer coating carried in a hydrofluoroether solvent. Designed for moisture and corrosion protection of printed circuit boards and electronic components, it dries to a thin, transparent, permanent film with excellent hydrophobic and oleophobic properties. Easy to apply, the coating should be post-cured to provide added durability and abrasion resistance. It is non-flammable, low in toxicity, non-ozone depleting and RoHS compliant.
Technical Physical Properties of 3M™ Novec™ 2702 Electronic Grade Coating
| Property | Coating Solution |
| Appearance | Clear, colorless liquid solution |
| Solids | 2 wt% fluoropolymer |
| Solvent | 3M™ Novec™ 7200DL Engineered Fluid |
| Specific Gravity | 1.43 |
| Boiling Point of Solvent | 76°C (168.8°F) |
| Flash Point | None |
| Environmental | Low in toxicity, non-ozone depleting, non-flammable, VOC exempt (US EPA), RoHS compliant, contains no chlorine or bromine |
| System | One Part |
| Property | Fluoropolymer Coating |
| Appearance | Transparent, colorless |
| Coating Thickness | 100 nm-1 µm (depending on application method) |
| Solvent and Chemical Resistance | Yes |
| Tg (glass transition temperature) | -63°C (-145.4°F) |
| Thermal Stability of Dry Film | Less than 5% weight loss after 1 hour at 200°C in air |
| Contact Angles (static, dip coated/dried on glass substrate) | 105° (water), 65° (hexadecane) |
| Refractive Index | 1.41 |
| Shelf Life | 2 years date of manufacture in unopened container |
| Solder-Through Repairability | Yes |
| Nonflammability Meets | UL 94 V-0 |
| Dielectric Constant @30% RH | 3.45 (@ 10Hz), 3.04 (@ 1kHz), 2.61 (@ 1MHz) |
| Dissipation Factor @30% RH | 0.05 (@ 10Hz), 0.04 (@ 1kHz), 0.03 (@ 1MHz) |
| Dielectric Breakdown Strength @20°C, 30% RH” | 1500 V/mil (20°C, 30%RH) |
Features of 3M™ Novec™ 2702 Electronic Grade Coating
• Low surface tension of the coating solution provides increased surface wetting, especially under low profile components
• Cross-links with a thermal cure for durable protection
• Contains no volatile organic compounds (VOCs) and has low global warming potential
• Can be applied to metals, glass or epoxy laminates
• Provides excellent repellency, anti-wetting and anti-sticking properties against liquids – water, hydrocarbons, silicones, and photoresists
• Is insoluble in solvents such as heptane, toluene and water
• Is thermally and electrically stable with excellent dielectric properties
• Covalently bonds to glass and metal oxide layers
• The polymer can endure up to 200°C for prolonged periods and maintain good repellency
• Has low surface energy which allows lubricating oils, silicones, etc. to bead and drain freely coated surfaces
Applications of 3M™ Novec™ 2702 Electronic Grade Coating
• Provides excellent moisture, chemical and corrosion protection to printed circuit boards and their components
• Is an easy and cost effective alternative to conformal coatings
• Can be used as a durable hydrophobic or oleophobic surface treatment in many diverse applications
• Can serve as
– an anti-stiction coating for liquid crystal displays, micromotors or MEMS (Micro Electronic Mechanical Systems) components
– an anti-migration coating for displays, spindle motors or lubricated electronic parts or
– an anti-corrosion coating for a variety of materials and components
