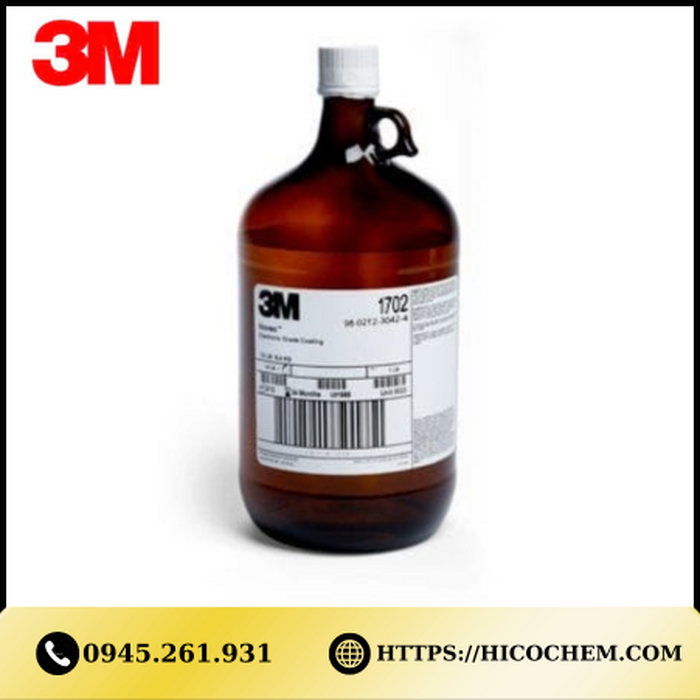

3M™ Novec™ 1702
4 5 (1 evaluate)Category: 3M™
Manufacturer: 3M
Origin: US
Packaging: 5kg, 25kg
Shipping: We provide door-to-door worldwide shipping services using UPS or FedEx
3M™ Novec™ 1702 Electronic Grade Coating is a single component fluorinated polymer diluted in 3M™ Novec™ 7100DL Engineered Fluid, a segregated hydrofluoroether solvent, providing a low viscosity, low surface tension coating solution. A lower solids content version of 3M™ Novec™ 1700 coating, it dries to an even thinner film and coats under low stand-off components. Designed for moisture and corrosion protection of printed circuit boards and electronic components, it dries to an ultrathin, transparent coating with excellent hydrophobic and oleophobic properties. It does not need curing and is easy to apply. Novec 1702 coating is nonflammable, non-ozone-depleting, low in toxicity, low in GWP, RoHS compliant and VOC exempt (per the U.S. EPA).
Technical Physical Properties of 3M™ 1702 Electronic Grade Coating
| Property | Coating Solution |
| Appearance | Clear, colorless liquid solution |
| Solids | 0.2 wt% fluorinated polymer |
| Solvent | 3M™ Novec™ 7100DL Engineered Fluid |
| Density | 1.5 g/ml @ 23°C (73.4°F) |
| Viscosity | 0.63 cP |
| Boiling Point per ASTM D1120-94 | 61°C (142°F) |
| Environmental | Low in toxicity, low in GWP, non-ozone depleting, non-flammable, VOC exempt (per the U.S. EPA), RoHS compliant, contains no chlorine or bromine |
| Flash Point | None (per closed cup method) |
| Property | Fluoropolymer Coating |
| Appearance | Transparent, colorless |
| Coating Thickness | <100 nm (depending on application method) |
| Solvent and Chemical Resistance | Resists a variety of solvents and chemicals. Dissolves in acetone |
| Tg (glass transition temperature) | 44°C (112°F) |
| Thermal Stability of Dry Film MIL-B-81744A | Repellent to chlorinated silicone oil after 24 hours at 175°C (347°F) |
| Contact Angles (static, dip coated/dried on glass substrate) | 105° (water), 65° (hexadecane) |
| Refractive Index | 1.39 |
| Shelf Life | Four years date of manufacture in original unopened package |
| Solder-Through Repairability | Yes |
| Non-Flammable | Meets UL 94 V-0 |
| Coefficient of Thermal Expansion - TMA | 70 µm/(m·°C) |
| Thermal Conductivity | 0.1 W/mK |
| Dielectric Constant @30% RH | 3.2 (@1kHz) |
| Dissipation Factor @30% RH | 0.002 (@1kHz) |
| Dielectric Breakdown Strength @20°C, 30% RH per ASTM D149 | 2000 V/mil |
Features of 3M™ 1702 Electronic Grade Coating
• Designed for moisture and corrosion protection of printed circuit boards and electronic components
• Low surface energy allows lubricating oils, silicones, photoresist solutions, etc. to bead and drain freely coated surfaces
• Helps provide repellency and antiwetting properties against liquids – water, hydrocarbons, silicones and photoresists
• Helps protect against corrosive gases and vapors in addition to liquids
• The polymer can endure up to 175°C (347°F) for 24 hours and maintain repellency
• Essentially insoluble in solvents such as heptanes, toluene and water
• Adheres to a variety of materials (metals, glass, ceramics, polymers, composites, laminates)
• Thermally and electrically stable with good dielectric properties
• Easy to apply – dries quickly without the need for post-application curing
• Excellent surface wetting, especially under low standoff SMT components
• Allows solder-through repairability
• Non-flammable, non-ozone-depleting, and low in toxicity
• Low in global warming potential (GWP), RoHS compliant and volatile organic compound (VOC) exempt (per the U.S. EPA)
Applications of 3M™ 1702 Electronic Grade Coating
Helps provide:
• Moisture, chemical and corrosion protection for printed circuit boards and their components
• An easy and cost-effective alternative to conformal coatings
• Anti-wetting, anti-stiction, anti-migration and anti-corrosion properties in many diverse applications
Can serve as:
• Anti-migration coating for displays, spindle motors or lubricated electronic parts
• Anti-corrosion coating for a variety of materials and components
