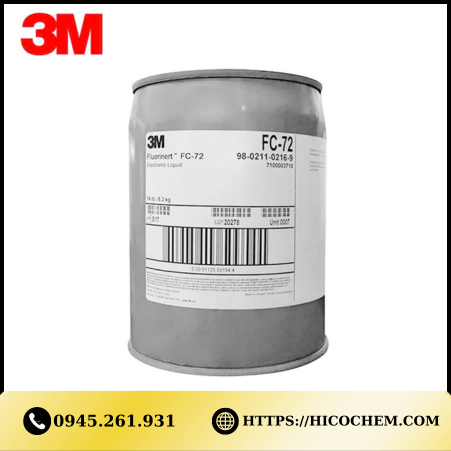

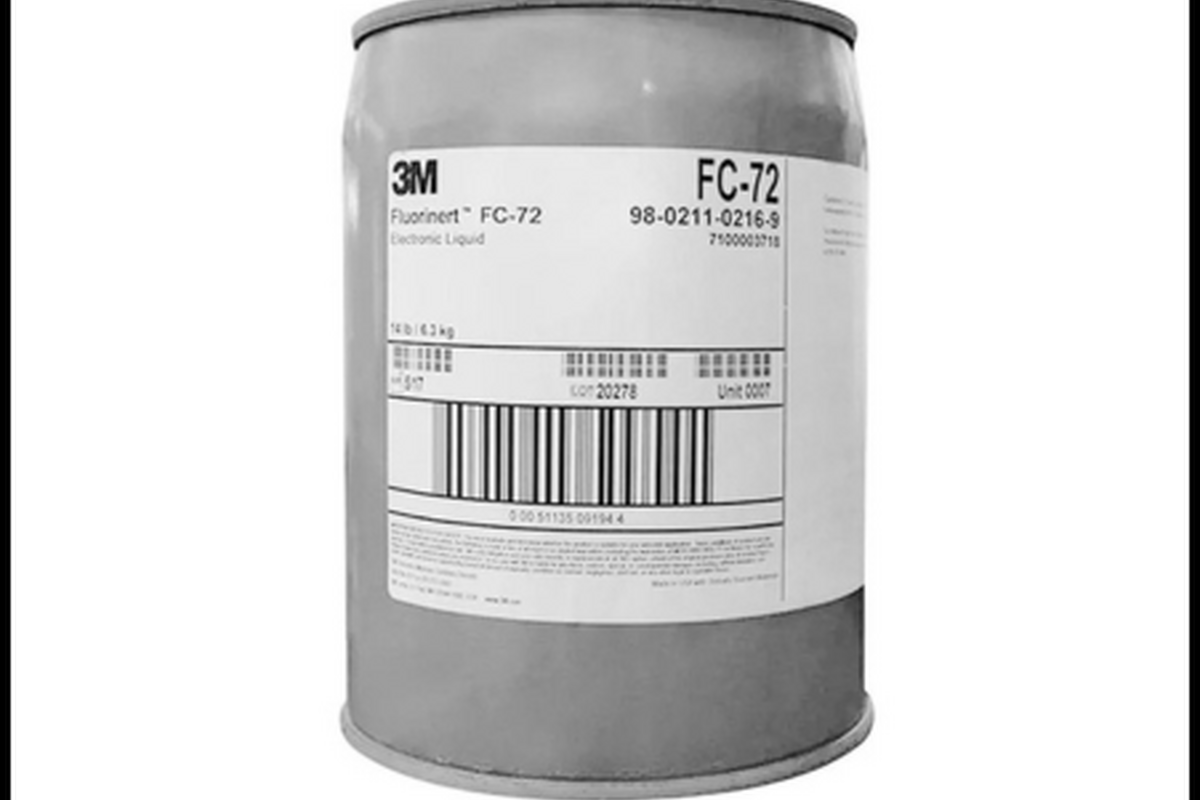

3M™ Fluorinert™ Electronic Liquid FC-72

3M™ Fluorinert™ Electronic Liquid FC-72 is a clear, colorless, fully-fluorinated liquid. Like other Fluorinert electronic liquids, Fluorinert liquid FC-72 is thermally and chemically stable, compatible with sensitive materials, nonflammable, practically non-toxic and leaves essentially no residue upon evaporation. This unique combination of properties makes Fluorinert liquid FC-72 ideal for many electronics applications, including quality and reliability testing. Fluorinert liquid FC-72 conforms to Military Specification 883 as a detector fluid in a vacuum/pressure vessel used in gross leak testing. Its inert nature makes Fluorinert liquid FC-72 a useful reaction medium.

Technical Physical Properties of 3M™ Fluorinert™ Electronic Liquid FC-72

Features of 3M™ Fluorinert™ Electronic Liquid FC-72

• Designed as a low-boiling dielectric fluid for rapid heat removal in sensitive electronic applications

• Excellent electrical insulation with high dielectric strength, allowing safe direct contact with energized devices

• Low boiling point (~56°C) ideal for two-phase (boiling) cooling applications with efficient heat removal

• Low viscosity enables easy pumping, rapid circulation, and improved convective heat transfer

• Very low surface tension provides superior wetting of complex geometries and densely packed components

• Chemically inert and thermally stable, ensuring consistent performance over time

• Non-flammable and non-corrosive, enhancing operational safety in electronic environments

• Fast evaporation and residue-free behavior, suitable for precision cleaning and contamination-sensitive processes

• Compatible with a wide range of materials including metals, plastics, and elastomers

• Narrow boiling range (single-component fluid) ensures stable and predictable thermal performance

• Low toxicity and safe handling characteristics for industrial applications

Applications of 3M™ Fluorinert™ Electronic Liquid FC-72

Helps provide:

• Highly efficient heat removal through phase-change (boiling) in immersion cooling systems

• Rapid cooling for high-performance electronics, CPUs, GPUs, and semiconductor devices

• Stable temperature control in semiconductor manufacturing and precision equipment

• Reliable environment for electronics testing, burn-in, and thermal cycling

• Effective cooling for telecommunications and compact electronic systems

Can serve as:

• A dielectric fluid for two-phase immersion cooling systems

• A heat transfer medium in applications requiring fast evaporation and condensation cycles

• A cleaning and rinsing fluid for electronic components due to its residue-free evaporation and excellent wetting properties
