How to Choose the Right Heat Transfer Fluid for Immersion Cooling Systems
Nội dung bài viết
As data centers, artificial intelligence (AI), and high-performance computing (HPC) continue to scale rapidly, thermal management has become one of the most critical challenges in modern IT infrastructure. Traditional air-cooling methods are increasingly reaching their limits in terms of efficiency, energy consumption, and scalability.
As a result, Immersion Cooling has emerged as a breakthrough solution, offering significantly higher cooling efficiency and lower operational costs. However, the performance of any immersion cooling system depends heavily on one key factor: the Heat Transfer Fluid (HTF).
Selecting the right fluid is not just a technical decision—it directly impacts system reliability, energy efficiency, hardware lifespan, and total cost of ownership (TCO).
.png)
What is an Immersion Cooling System?

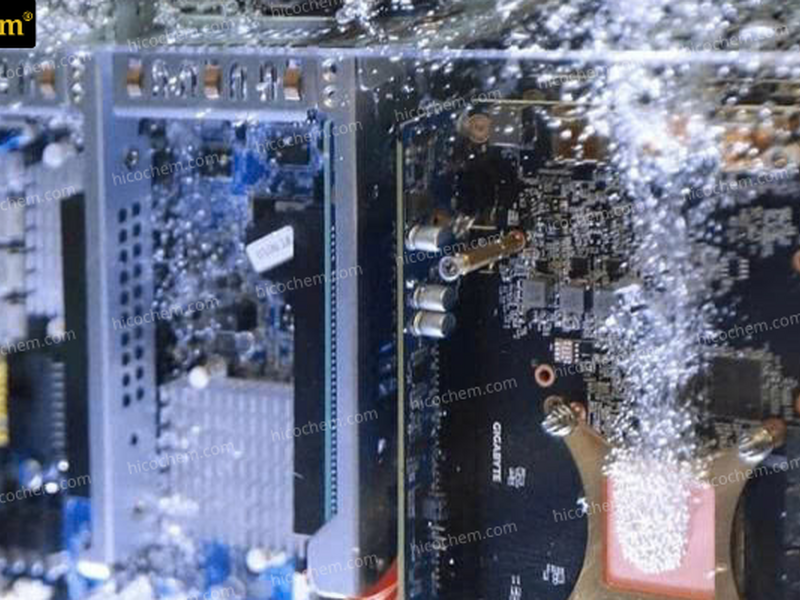

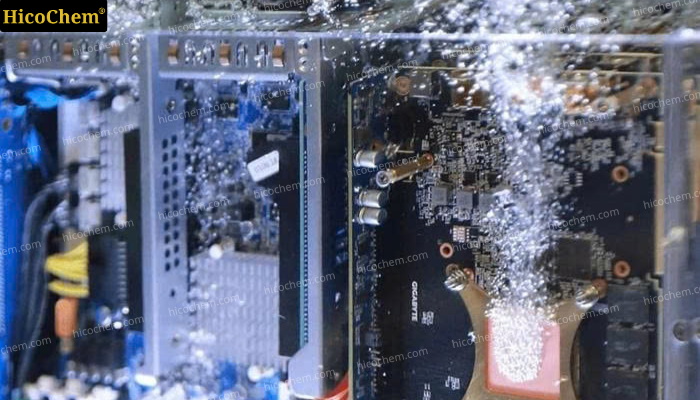

Immersion cooling is a method where servers and electronic components are fully submerged in a dielectric liquid. This fluid is non-conductive, allowing safe operation even when hardware is completely immersed.
There are two main types of immersion cooling systems:
The Heat Transfer Fluid plays a central role in the system:
-
Absorbs heat CPUs, GPUs, and other components
-
Transfers heat away through heat exchangers or condensers
-
Protects electronics electrical damage and corrosion
Key Criteria for Selecting Heat Transfer Fluid
-
Thermal Performance
-
Dielectric Strength
-
Boiling Point / Phase Behavior
-
Viscosity
-
Chemical Stability
-
Material Compatibility
-
Safety and Environmental Considerations
-
Total Cost of Ownership (TCO)
.png)
Common Type of Heat Transfer Fluids
|
Fluid Type |
Advantages |
Disadvantages |
Typical Applications |
|
Mineral Oil |
- Very low cost - Widely available - Easy to implement |
- Poor thermal performance - Prone to oxidation and degradation - Flammable - Requires frequent maintenance |
Crypto mining, small-scale or low-cost systems |
|
PAO (Synthetic Hydrocarbon) |
- Better thermal stability than mineral oil - Low viscosity → good flow performance - Longer service life |
- Still flammable - Not suitable for two-phase cooling - Higher cost than mineral oil |
Single-phase data centers, enterprise applications |
|
Ester-based Fluids |
- Biodegradable - Good lubricating properties - More environmentally friendly |
- Hygroscopic (absorbs moisture) - May affect components if not controlled properly - Medium to high cost |
Green cooling applications, environmentally sensitive systems |
|
Fluorinated Fluids (PFPE – e.g., Galden®) |
- Absolutely non-conductive - Non-flammable - Very high cooling performance - Wide boiling range: 55°C to 270°C - Suitable for both single-phase and two-phase systems - Extremely stable chemically - Compatible with metals, plastics, and elastomers |
- High cost - Requires sealed systems - Evaporation control needed (low boiling grades) |
AI, HPC, semiconductor, advanced data centers |
|
Fluorinated Fluids (HFE – e.g., Novec™ / Fluorinert™) |
- High performance (especially for two-phase cooling) - Fast evaporation for efficient heat transfer - Electrically safe |
- High cost - Environmental concerns (PFAS-related) - Long-term supply uncertainty |
Two-phase immersion cooling systems |
|
Silicone-based Fluids |
- Good thermal stability - Low toxicity - Strong oxidation resistance |
- Lower thermal conductivity - Relatively high cost - Less common in immersion cooling |
Specialized industrial applications |
Heat Transfer Fluid is not just a cooling medium - it is the core component of any immersion cooling system. Choosing the right fluid ensures optimal thermal performance, reduces energy consumption, extends hardware lifespan, and lowers the total cost of ownership. Conversely, an incorrect selection can lead to significant operational inefficiencies and financial risks.
If you are looking for a genuine, high-performance Heat Transfer Fluid solution for Immersion Cooling, the Hicotech Vietnam technical team is ready to assist you with fluid selection advice.
Contact us today to explore the best solution tailored to your application.
