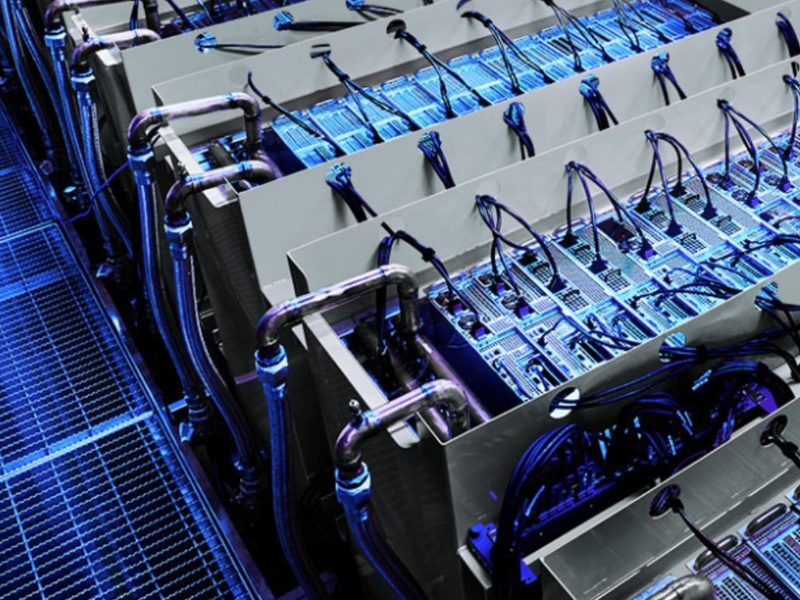

Single-Phase Immersion Cooling

What is Single-Phase Immersion Cooling?

Single-phase immersion cooling is a cooling method in which electronic components are completely immersed in a non-conductive dielectric fluid. This fluid absorbs heat but does not change to another state (it does not boil), making the system more efficient, energy-saving, and space-saving compared to air cooling.

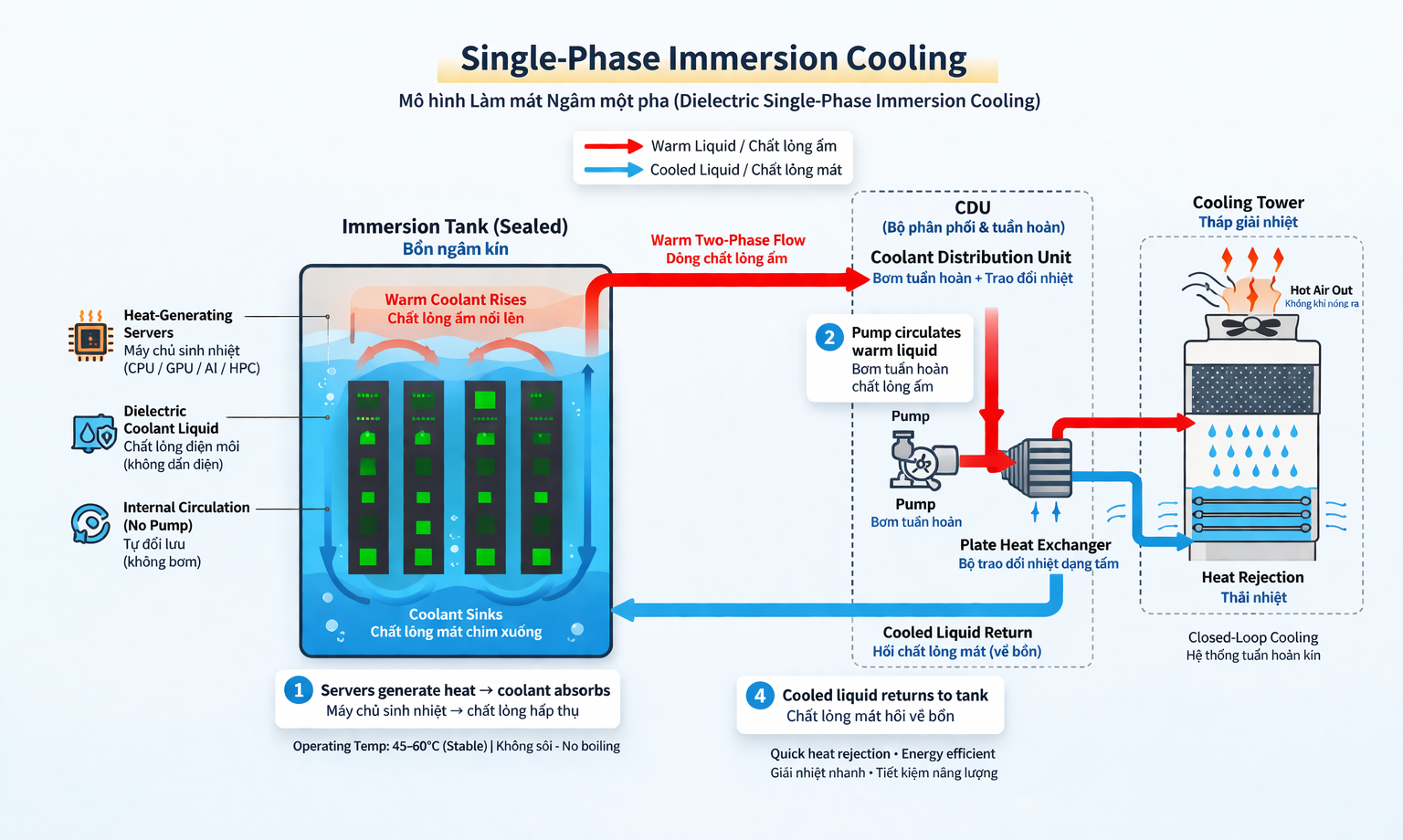

How Single-Phase Immersion Cooling Works?

Single-phase immersion cooling is an advanced thermal management technology in which electronic components are fully submerged in a non-conductive dielectric fluid. As the system operates, heat generated by components such as CPUs, GPUs, or power electronics is directly transferred to the surrounding fluid. The liquid absorbs this heat without undergoing a phase change, meaning it remains in its liquid state throughout the process. The heated fluid is then circulated through a cooling loop, where it passes through a heat exchanger to dissipate the absorbed heat before being returned to the system. This method provides efficient and uniform cooling, reduces the need for air-based systems, and enhances the reliability and performance of high-density electronics.

Key Advantages of Single-Phase Immersion Cooling

Compared to traditional air-cooling systems, single-phase immersion cooling systems deliver significantly higher efficiency by eliminating the need for fans, which in turn reduces energy consumption and operational costs. Moreover, the dielectric fluid used in the system can help suppress fires, enhancing overall safety within the data center.

In addition, single-phase immersion cooling is a more environmentally friendly solution. The cooling fluid is non-toxic and non-flammable, making it safe for both equipment and personnel while supporting sustainable data center operations.

• Energy savings and cost reduction:

Energy consumption and operating costs can be reduced by up to 90%. By eliminating the need for complex air conditioning systems and server fans, overall power usage is significantly lowered while minimizing reliance on air-cooling infrastructure, thereby substantially reducing the total cost of ownership (TCO).

• Reliability and Compatibility:

Immersion-cooled hardware demonstrates extended lifespan and lower failure rates. Servers and components have been thoroughly tested to ensure compatibility with the cooling fluids.

• Scalability:

Single-phase immersion cooling technology enables higher compute density and improved performance within the same or even smaller physical footprint. Modular tank designs allow for easy relocation and seamless integration, making system scaling simple and flexible.

• Improve Power Usage Effectiveness (PUE):

Power Usage Effectiveness (PUE) is a metric used to measure the efficiency of a data center by comparing the total energy consumed by the facility to the energy used by its IT equipment. Ideally, the PUE would be 1.0, indicating maximum efficiency. However, conventional air-cooled data centers typically operate at a PUE of around 1.65. Conversely, single-phase immersion cooling systems can achieve a much lower PUE, typically in the range of 1.02 to 1.03, demonstrating superior energy efficiency.

Key Applications of Single-Phase Immersion Cooling

• Enterprise HPC

High-Performance Computing (HPC) demands top-tier computational performance, advanced CPU architectures to accelerators and high-speed networking. To handle massive datasets, simulations, and complex models, HPC clusters must operate efficiently, delivering rapid results while maintaining seamless communication between systems.

• AI & Machine Learning

AI and machine learning workloads require substantial parallel processing power, often driven by dense GPU deployments. These high-performance GPUs generate significant heat, leading to increased energy consumption for air cooling. Single-phase immersion cooling provides a more cost-effective and energy-efficient alternative while supporting sustainable operations.

• 5G Networks & Edge Computing

The expansion of 5G networks is driving greater investment in edge computing to minimize latency. However, edge data centers are typically located in space-constrained urban environments. Single-phase immersion cooling enables higher computing density within limited space, making it an ideal solution for edge deployments.

• Blockchain & Crypto

Blockchain and cryptocurrency systems depend on continuous verification across distributed networks to ensure data integrity. As network size grows, computational demands increase, resulting in higher heat generation. Single-phase immersion cooling offers an efficient, cost-effective, and environmentally friendly solution to manage these thermal challenges.

• High Frequency Trading (HFT)

High-frequency trading requires ultra-fast, high-performance computing systems with minimal latency. Even millisecond differences in transaction speed can result in significant financial gains or losses. Single-phase immersion cooling supports higher overclocking potential, making it well-suited for these performance-critical applications.



To learn more about single-phase immersion cooling systems and suitable heat transfer oil solutions for your business, please contact Hicotech Vietnam for detailed advice and the best support. Hicotech Vietnam is committed to providing genuine, high-quality products that optimally meet the stringent requirements of the electronics industry.
